CW2900 TRIO 25' Wood insert
CB00022KGet 5% off on purchases of $3,000 or more.
Discount automatically applied to cart.
DESCRIPTION
- Large size firebox
- Spring faceplate adjustment system which easily adapts to any type of hearth
- Reinforced appliance top with a stainless steel heat shield
- Cast iron door and ceramic glass
- EPA certified at 2.3 g/h
- Non-catalytic combustion system
- Designed and made in Canada
- Included: 34" x 50", 6'' liner kit (25' Vortex flexible stainless steel liner, connector, 13'' x 13'' top plate, chimney cap with no screen), faceplate, air intake damper and 144 CFM blower with thermodisc
ACCESSORIES TO COMPLETE YOUR INSTALLATION

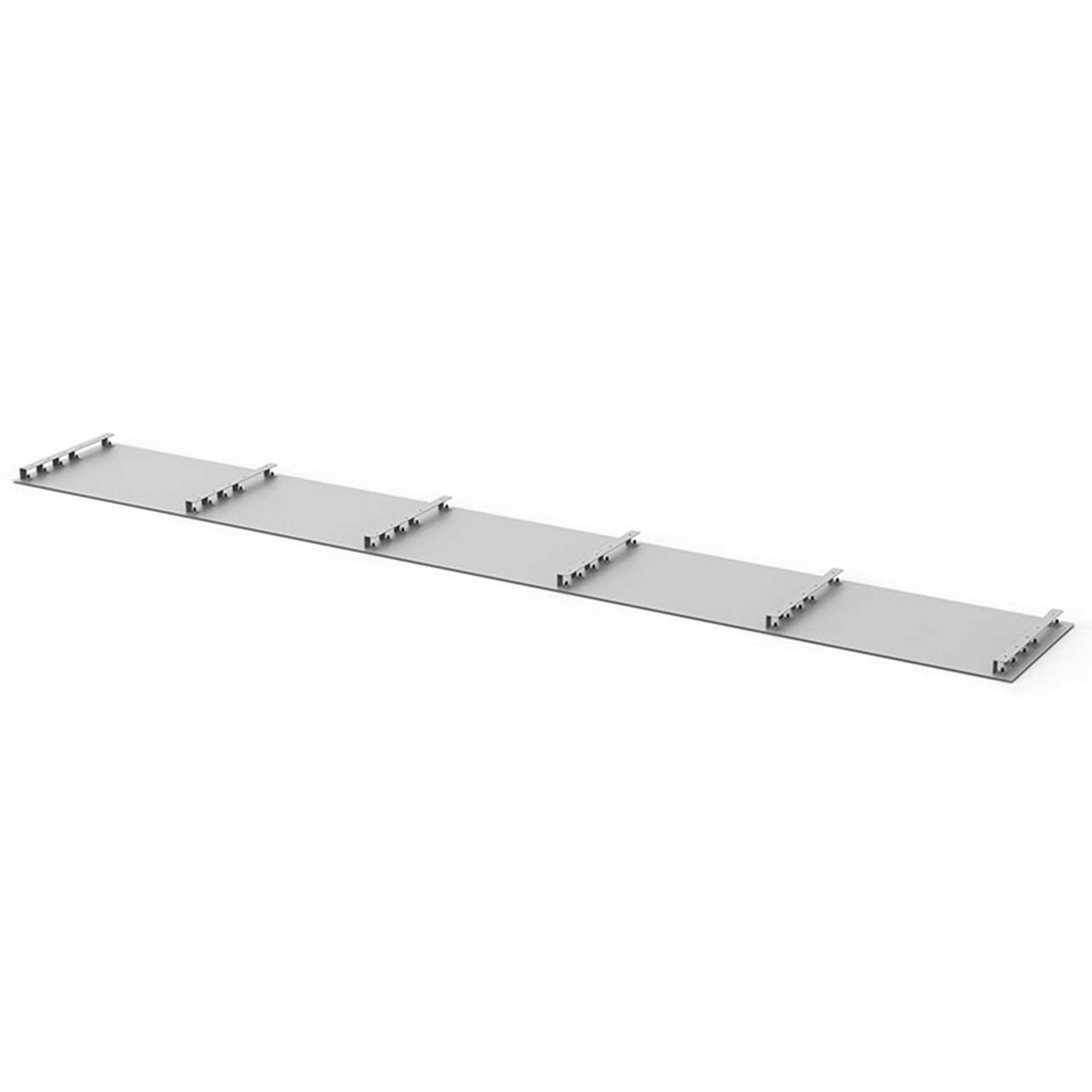

HEAT SHIELD FOR SURROUND/SHELF
n/a
19" KEVLAR THREAD SEWN FIREPLACE GLOVES
n/a

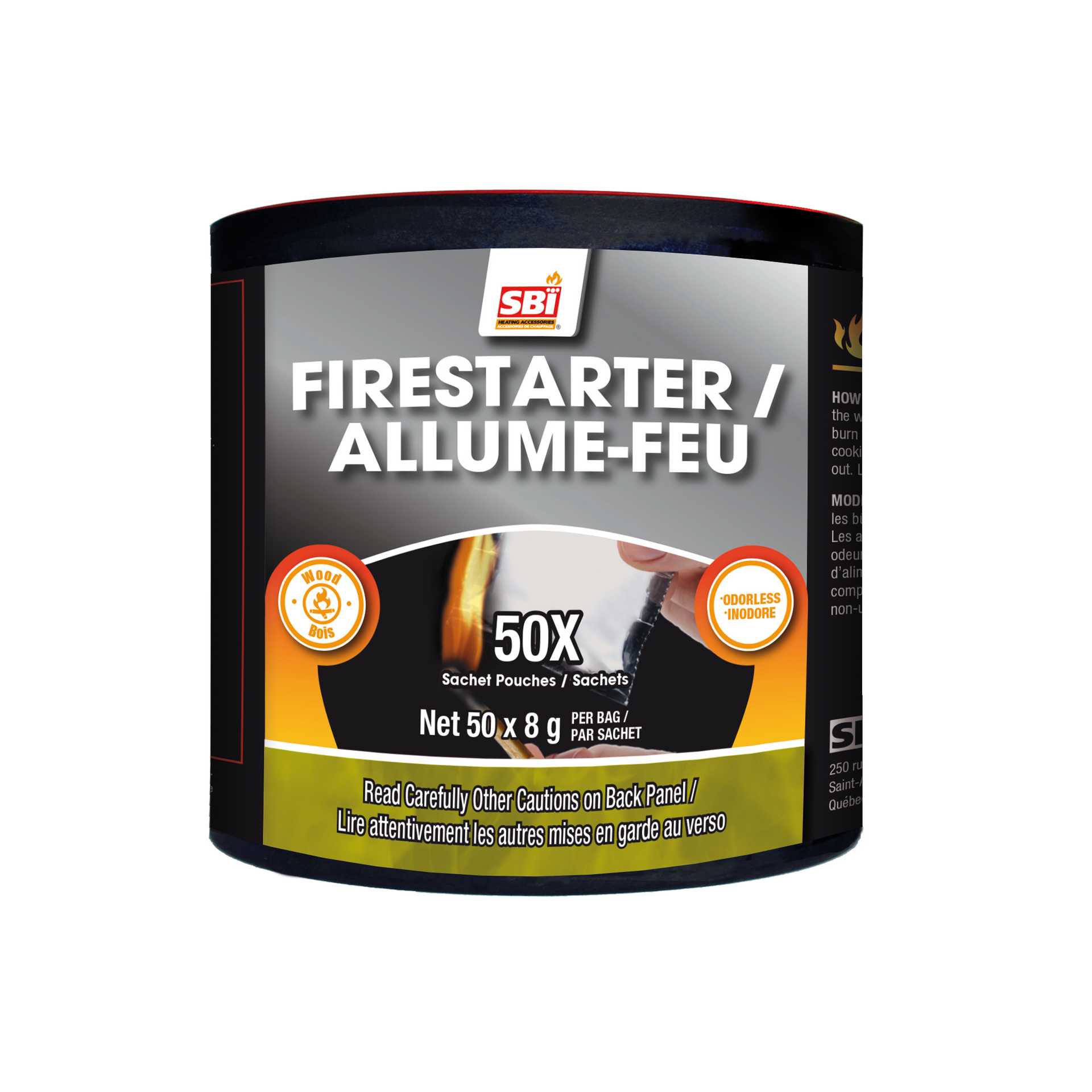

50 SACHET POUCHES FIRE STARTER
n/a
SPECIFICATIONS AND MANUALS
Appliance performance
Recommended heating area and maximum burn time may vary subject to location in home, chimney draft,heat loss factors, climate, fuel type and other variables. The recommended heated area for a given appliance is defined by the manufacturer as its capacity to maintain a minimum acceptable temperature in the designated area in case of a power failure.
Recommended heating area and maximum burn time may vary subject to location in home, chimney draft,heat loss factors, climate, fuel type and other variables. The recommended heated area for a given appliance is defined by the manufacturer as its capacity to maintain a minimum acceptable temperature in the designated area in case of a power failure.
The maximum heat output (dry cordwood) is based on a loading density varying between 15 lb/ft³ and 20 lb/ft³. Other performances are based on a fuel load prescribed by the standard. The specified loading density varies between 7 lb/ft³ and 12 lb/ft³. The moisture content is between 19% and 25%.
The maximum heat output (dry cordwood) is based on a loading density varying between 15 lb/ft³ and 20 lb/ft³. Other performances are based on a fuel load prescribed by the standard. The specified loading density varies between 7 lb/ft³ and 12 lb/ft³. The moisture content is between 19% and 25%.
As measured per CSA B415.1-10 stack loss method.
The maximum heat output (dry cordwood) is based on a loading density varying between 15 lb/ft³ and 20 lb/ft³. Other performances are based on a fuel load prescribed by the standard. The specified loading density varies between 7 lb/ft³ and 12 lb/ft³. The moisture content is between 19% and 25%.
As measured per CSA B415.1-10 stack loss method.
As measured per CSA B415.1-10 stack loss method.
Higher Heating Value of the fuel.
As measured per CSA B415.1-10 stack loss method.
Lower Heating Value of the fuel.
Performances based on a fuel load prescribed by the standard at 7 lb/ft³ and with a moisture content between 19% and 25%.
Optimum overall efficiency at a specific burn rate (LHV).
The optimum heat transfer efficiency is for the low burn rate and represents the appliance’s ability to convert the energy contained in the wood logs into energy transferred to the room in the form of heat and does not take into account the chemical losses during combustion.
This appliance is officially tested and certified by an independent agency.
Carbon monoxyde.
Manuals
- Installation and user’s manual
- Appliance dimensions
Clearances to combustible materials
Clearances to combustible materials | Canada | |||
|---|---|---|---|---|
| Clearances to combustible materials - Base of the unit to ceiling ** | 84" | |||
| Clearances to combustible materials - Combustible side mantle to unit | 9" | |||
| Clearances to combustible materials - Combustible top mantle to unit | 27" | |||
| Clearances to combustible materials - Combustible side wall to unit | 16" | |||
| Clearances to combustible materials - Top of the unit to a 12" combustible mantle shelf | 27" | |||
* Les informations inscrites sur la plaque d'homologation de l'appareil ont toujours préséance sur les informations contenues dans tout autre média publié (manuels, catalogues, circulaires, revues ou sites Web). Consultez le manuel d'installation pour valider tous les dégagements aux matériaux combustibles. | ||||
