FW2700 WOOD STOVE WITH BLOWER

CB00013

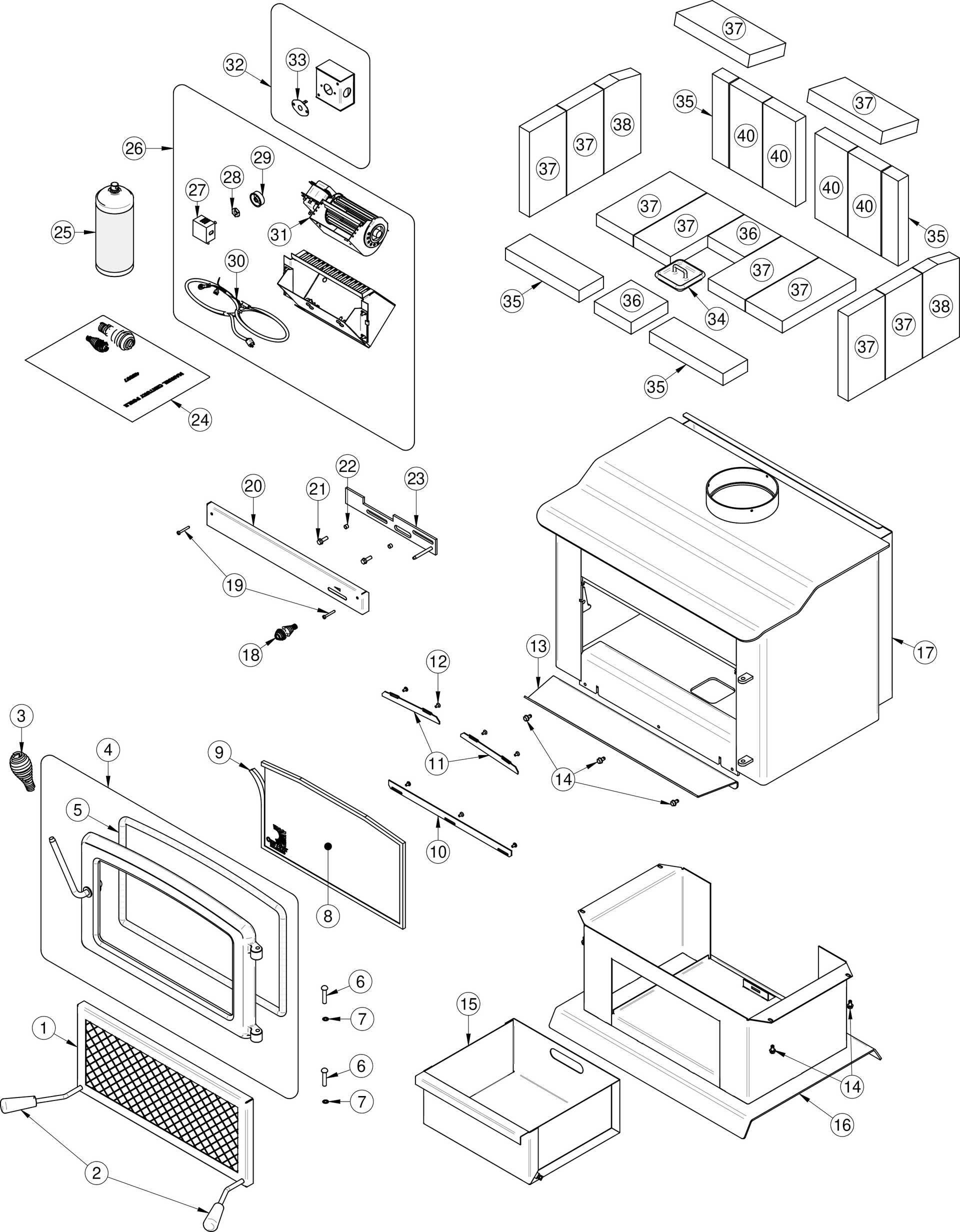

The reference plan contains the numbers used in the table below to identify parts.

#Part (sold individually)Msrp per item*Shipping date
1AC07867
1/2" CHROME PLATED COIL HANDLE
1 / appliance (sold individually)
CAD $19.00
2SE24209
CAST IRON DOOR ASSEMBLY
1 / appliance (sold individually)
CAD $185.00
3AC06500
SILICONE AND 5/8" x 8' BLACK DOOR GASKET KIT
1 / appliance (sold individually)
CAD $30.00
430170
HINGE PIN 5/16"Ø X 1 1/2" L
2 / appliance (sold individually)
CAD $13.00
530055
HINGE PIN RETAINING RING 5/16"ID X 0.512"OD
2 / appliance (sold individually)
CAD $12.00
6SE63001
ARCHED REPLACEMENT GLASS WITH GASKET 9 1/16'' X 9 9/16'' X 17 5/16''
1 / appliance (sold individually)
CAD $190.00
7AC06400
3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET
1 / appliance (sold individually)
CAD $22.00
8PL55105
GLASS RETAINER FRAME
1 / appliance (sold individually)
CAD $26.00
9PL55106
GLASS RETAINER FRAME
2 / appliance (sold individually)
CAD $26.00
1030124
SCREW #8 - 32 X 5/16'' TRUSS QUADREX ZINC
7 / appliance (sold individually)
CAD $12.00
11PL65284
ASH LIP
1 / appliance (sold individually)
CAD $20.00
1230060
THREAD-CUTTING SCREW 1/4-20 X 1/2" F HEX STEEL SLOT WASHER C102 ZINC
7 / appliance (sold individually)
CAD $12.00
14SE08304-01
ASH DRAWER
1 / appliance (sold individually)
CAD $90.00
1730125
MECHANICAL SCREW #8 X 1 1/4" QUADREX ZINC
2 / appliance (sold individually)
CAD $12.00
18PL63058
AIR CONTROL COVER
1 / appliance (sold individually)
CAD $21.00
1930094
HEX SCREW WASHER HEAD 1/4-20 X 3/4" F ZINC TYPE
2 / appliance (sold individually)
CAD $13.00
2030428
BUSHING
2 / appliance (sold individually)
CAD $18.00
21SE63119
AIR CONTROL DAMPER
1 / appliance (sold individually)
CAD $10.00
22SE45601
FW2700 WITH BLOWER INSTRUCTION MANUEL KIT
1 / appliance (sold individually)
CAD $25.00
23AC02050
BLOWER WITH VARIABLE SPEED CONTROL (100 CFM)
1 / appliance (sold individually)
CAD $160.00
2444073
CROSSFLOW BLOWER 115V-60Hz-39W 100 CFM
2 / appliance (sold individually)
CAD $145.00
2544080
RHEOSTAT WITHOUT NUT
1 / appliance (sold individually)
CAD $30.00
2644087
RHEOSTAT NUT
1 / appliance (sold individually)
CAD $1.00
2760013
POWER CORD 96" X 18-3
1 / appliance (sold individually)
CAD $26.00
2844085
RHEOSTAT KNOB
1 / appliance (sold individually)
CAD $5.00
29AC05530

1 / appliance (sold individually)
CAD $85.00
29AC02055
QUICK CONNECT THERMODISC
1 / appliance (sold individually)
CAD $65.00
30SE16059
ASH PLUG
1 / appliance (sold individually)
CAD $20.00
35PL36021
2 1/8" X 9" X 1 1/4'' REFRACTORY BRICK
2 / appliance (sold individually)
CAD $21.00
13,1599999
BUILD TO ORDER
1 / appliance (sold individually)
--
32PL36049
4 1/2" X 4 1/2'' X 1 1/4'' REFRACTORY BRICK
2 / appliance (sold individually)
CAD $24.00
3329010
4 1/2" X 9" X 1 1/4" REFRACTORY BRICK
10 / appliance (sold individually)
CAD $19.00
34PL36019
4 1/2" X 9'' X 8 3/8'' X 1 7/8'' REFRACTORY BRICK
2 / appliance (sold individually)
CAD $24.00
3629015
4'' x 9'' x 1 1/4'' REFRACTORY BRICK
4 / appliance (sold individually)
CAD $19.00

The number appears on the reference plan provided above the table.

Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.

* Contact your local dealer for complete details regarding prices, products, services etc. Prices displayed do not include taxes, freight, installation charges, duties, and/or customs fees if applicable.
