FW2700 WOOD STOVE

CB00003

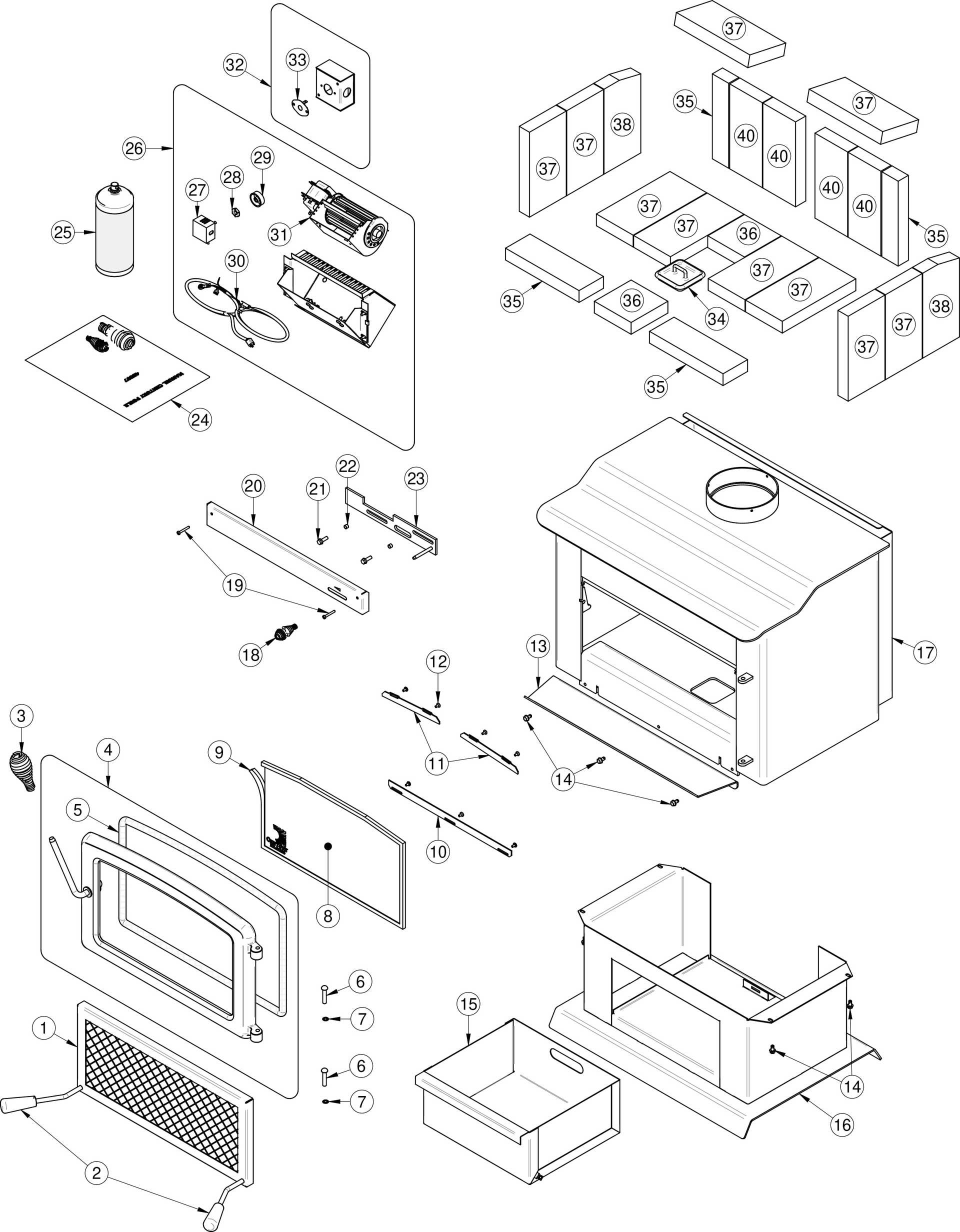

The reference plan contains the numbers used in the table below to identify parts.

#Part (sold individually)Msrp per item*Shipping date
1AC01319
RIGID FIRESCREEN
1 / appliance (sold individually)
USD $120.00
230569
ROUND WOODEN HANDLE BLACK
2 / appliance (sold individually)
USD $26.00
3AC07867
1/2" CHROME COIL HANDLE
1 / appliance (sold individually)
USD $18.00
4SE24209
CAST IRON DOOR ASSEMBLY
1 / appliance (sold individually)
USD $185.00
5AC06500
SILICONE AND 5/8" x 8' BLACK DOOR GASKET KIT
1 / appliance (sold individually)
USD $30.00
630170
HINGE PIN 5/16"Ø X 1 1/2" L
2 / appliance (sold individually)
USD $13.00
730055
HINGE PIN RETAINING RING 5/16"ID X 0.512"OD
2 / appliance (sold individually)
USD $12.00
8SE63001
ARCHED REPLACEMENT GLASS WITH GASKET 9 1/16'' X 9 9/16'' X 17 5/16''
1 / appliance (sold individually)
USD $190.00
9AC06400
3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET
1 / appliance (sold individually)
USD $21.00
10PL55105
GLASS RETAINER FRAME
1 / appliance (sold individually)
USD $26.00
11PL55106
GLASS RETAINER FRAME
2 / appliance (sold individually)
USD $26.00
1230124
SCREW #8 - 32 X 5/16'' TRUSS QUADREX ZINC
7 / appliance (sold individually)
USD $12.00
13PL65284
ASH LIP
1 / appliance (sold individually)
USD $20.00
1430060
THREAD-CUTTING SCREW 1/4-20 x 1/2" F HEX STEEL SLOT WASHER C102 ZINC
7 / appliance (sold individually)
USD $12.00
15SE08304-01
ASH DRAWER
1 / appliance (sold individually)
USD $90.00
1699999
BUILD TO ORDER
1 / appliance (sold individually)
--
1799999
BUILD TO ORDER
1 / appliance (sold individually)
--
18AC07863
1/4" CHROME LONG COIL HANDLE
1 / appliance (sold individually)
USD $17.00
1930125
MECHANICAL SCREW #8 X 1 1/4" QUADREX ZINC
2 / appliance (sold individually)
USD $12.00
20PL63058
AIR CONTROL COVER
1 / appliance (sold individually)
USD $21.00
2130094
HEX SCREW WASHER HEAD 1/4-20 X 3/4" F ZINC TYPE
2 / appliance (sold individually)
USD $13.00
2230428
BUSHING
2 / appliance (sold individually)
USD $18.00
23SE63119
AIR CONTROL DAMPER
1 / appliance (sold individually)
USD $10.00
24SE45597
FW2700 INSTRUCTION MANUEL KIT
1 / appliance (sold individually)
USD $25.00
25AC05963
METALLIC BLACK STOVE PAINT - 85 g (3oz) AEROSOL
1 / appliance (sold individually)
USD $19.00
26AC02050
BLOWER WITH VARIABLE SPEED CONTROL (100 CFM)
1 / appliance (sold individually)
USD $150.00
2744080
RHEOSTAT WITHOUT NUT
1 / appliance (sold individually)
USD $30.00
2844087
RHEOSTAT NUT
1 / appliance (sold individually)
USD $1.00
2944085
RHEOSTAT KNOB
1 / appliance (sold individually)
USD $5.00
3060013
POWER CORD 96" X 18-3
1 / appliance (sold individually)
USD $26.00
3144073
CROSSFLOW BLOWER 115V-60Hz-39W 100 CFM
1 / appliance (sold individually)
USD $145.00
32AC02055
QUICK CONNECT THERMODISC
1 / appliance (sold individually)
USD $60.00
3344028
CERAMIC THERMODISC F110-20F
1 / appliance (sold individually)
USD $20.00
34SE16059
ASH PLUG
1 / appliance (sold individually)
USD $34.00
35PL36021
2 1/8" X 9" X 1 1/4'' REFRACTORY BRICK
4 / appliance (sold individually)
USD $21.00
36PL36049
4 1/2" X 4 1/2'' X 1 1/4'' REFRACTORY BRICK
2 / appliance (sold individually)
USD $24.00
3729010
4 1/2" X 9" X 1 1/4" REFRACTORY BRICK
10 / appliance (sold individually)
USD $19.00
38PL36019
4 1/2" X 9'' X 8 3/8'' X 1 7/8'' REFRACTORY BRICK
2 / appliance (sold individually)
USD $24.00
4029015
4'' X 9'' X 1 1/4'' REFRACTORY BRICK
4 / appliance (sold individually)
USD $19.00

The number appears on the reference plan provided above the table.

Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.

* Contact your local dealer for complete details regarding prices, products, services etc. Prices displayed do not include taxes, freight, installation charges, duties, and/or customs fees if applicable.
