Products > Wood Inserts > CB00022

OPTIONS

5"Ø FRESH AIR INTAKE KITAC01298

N/A
Discontinued

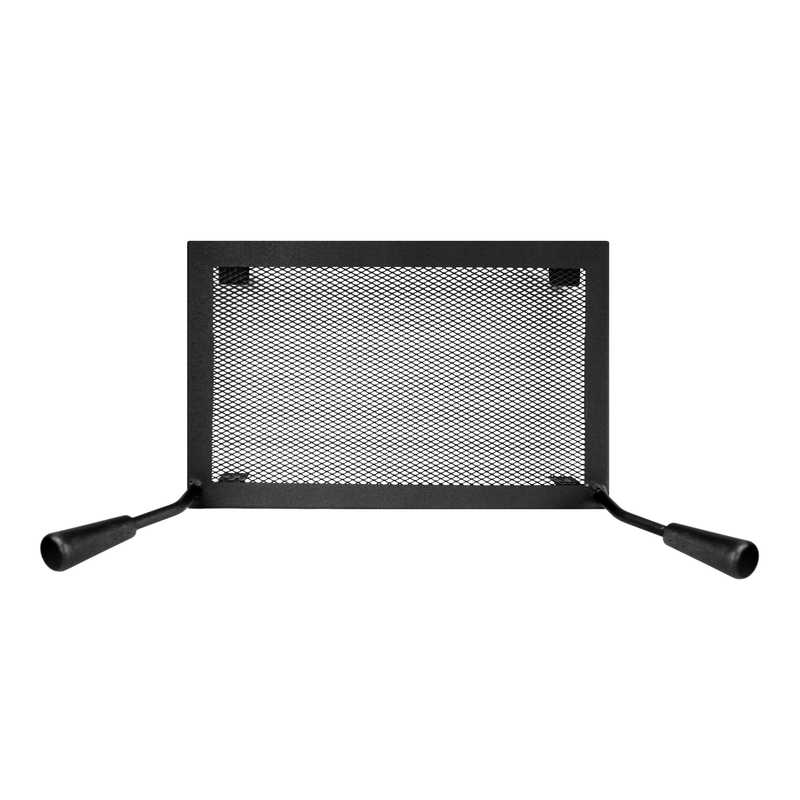

RIGID FIRESCREENAC01315

N/A
Discontinued

OFFSET LINER ADAPTORAC01214

N/A
Discontinued

OPTIONS

5"Ø FRESH AIR INTAKE KITAC01298

N/A
Discontinued

RIGID FIRESCREENAC01315

N/A
Discontinued

OFFSET LINER ADAPTORAC01214

N/A
Discontinued

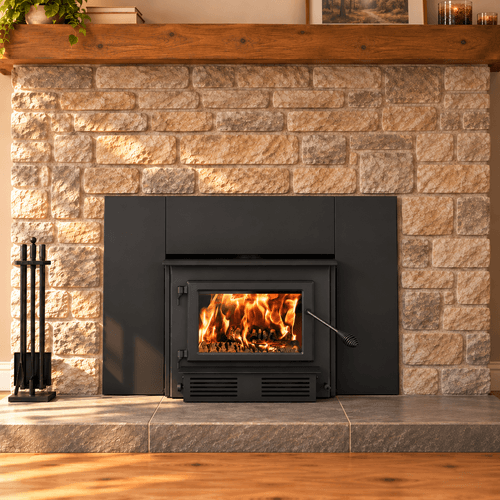

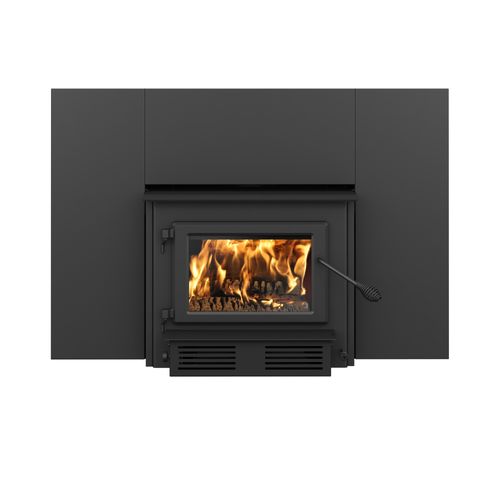

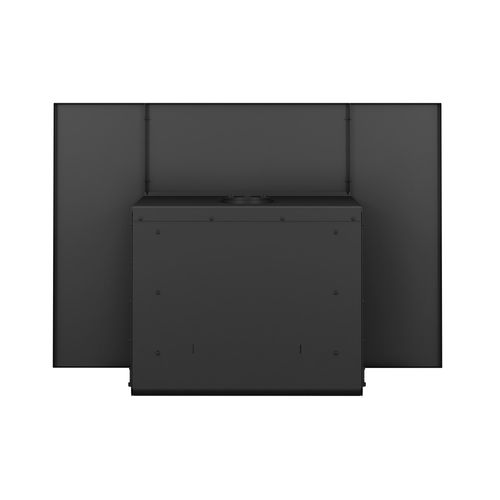

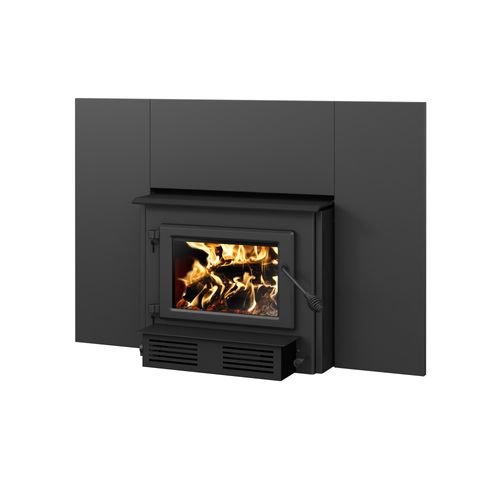

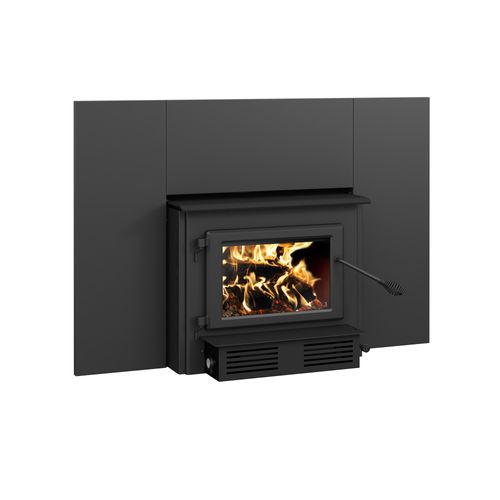

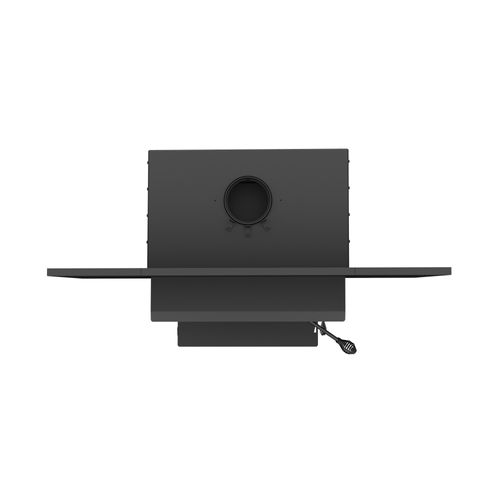

Wood Insert - CW2900 Wood insert

CB00022
Be the first to rate this product
N/A
This price includes the Steel Tariff surcharge.
No additional customs fees.
Discontinued

Get 5% off purchases of $3,000 or more.

Discount automatically applied to cart.

Maximum heat output-dry cordwood
75,000 BTU/h
Dimensions
28 1/2" W X 26 1/2" D X 22 5/8" H
Maximum log length
20" (16" recommended)
Average particulate emissions rate
2.3 g/h
Recommended heating area-ft²
1,700 - 2,900 ft²
The recommended heating area varies depending on the climatic zones. To validate the values ​​that apply to your place of residence, click here >

DESCRIPTION

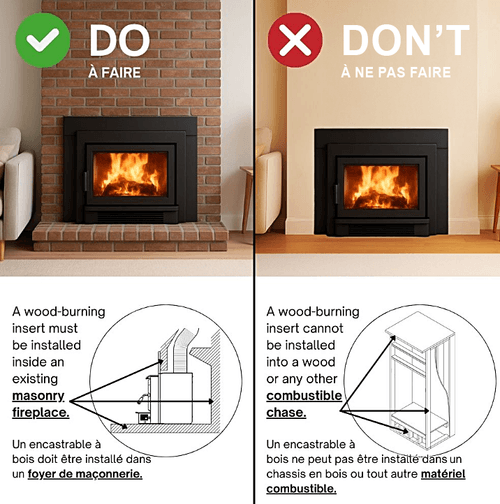

Warning: Wood-burning inserts must only be installed inside an existing masonry fireplace and never in a wooden or combustible structure.

  • Suitable for masonry fireplaces only
  • Large size firebox
  • Spring faceplate adjustment system which easily adapts to any type of hearth
  • Reinforced appliance top with a stainless steel heat shield
  • Cast iron door and ceramic glass
  • Glass airwash system for a cleaner view of the flames
  • EPA certified at 2.3 g/h
  • Non-catalytic combustion system
  • Designed and made in Canada
  • Included: 34" x 50" faceplate, air intake damper and 144 CFM blower with thermodisc
icon-gov-incentive
Government incentives
Government incentives may apply to this product. For more details, click here >

Warning: Wood-burning inserts must only be installed inside an existing masonry fireplace and never in a wooden or combustible structure.

  • Suitable for masonry fireplaces only
  • Large size firebox
  • Spring faceplate adjustment system which easily adapts to any type of hearth
  • Reinforced appliance top with a stainless steel heat shield
  • Cast iron door and ceramic glass
  • Glass airwash system for a cleaner view of the flames
  • EPA certified at 2.3 g/h
  • Non-catalytic combustion system
  • Designed and made in Canada
  • Included: 34" x 50" faceplate, air intake damper and 144 CFM blower with thermodisc
See the appliance in my space
icon-gov-incentive
Government incentives
Government incentives may apply to this product. For more details, click here >

ACCESSORIES TO COMPLETE YOUR INSTALLATION

    4' INSULATED FLEX PIPE FOR 5"Ø FRESH AIR INTAKE

    AC02090
    N/A
    Discontinued

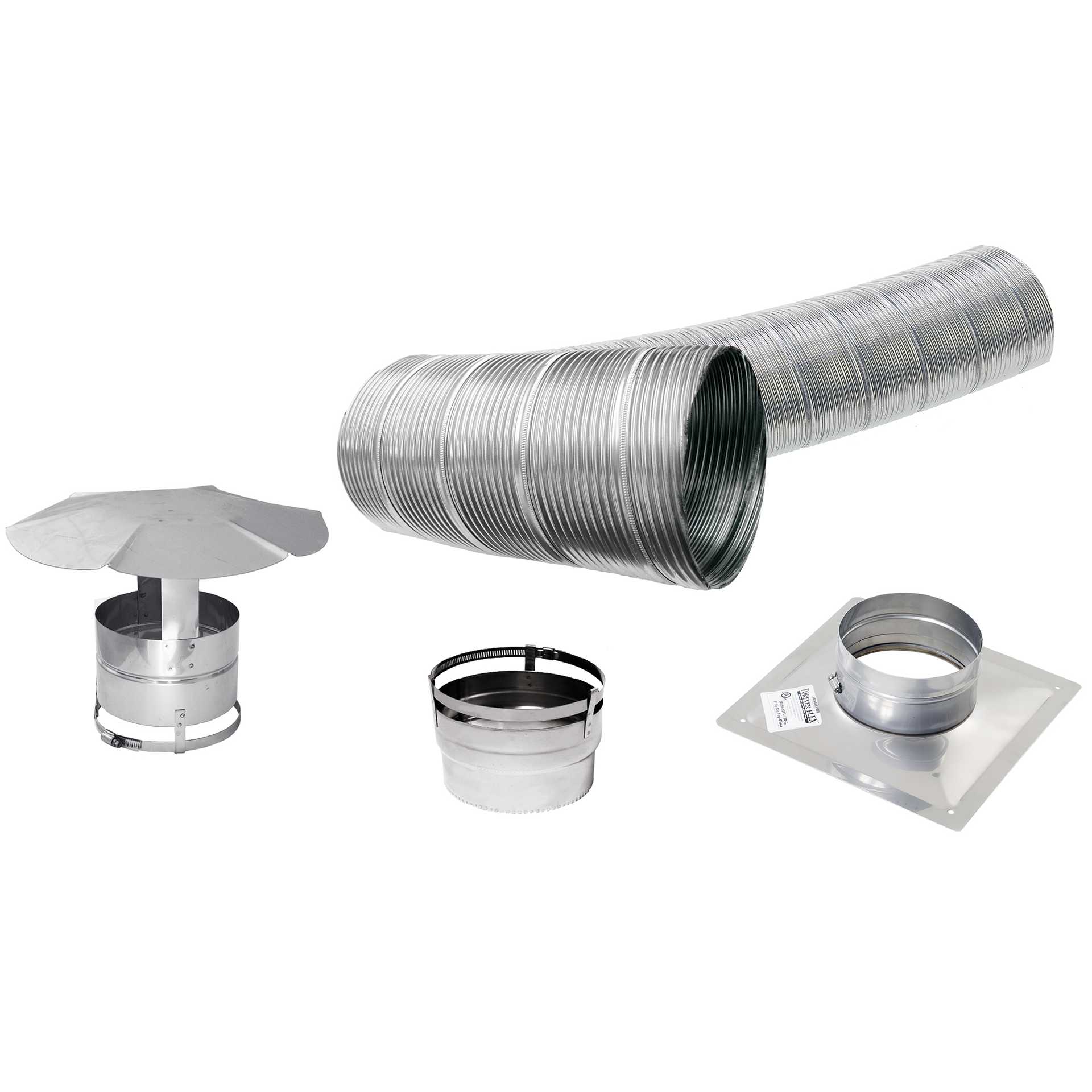

      6"Ø X 25' STAINLESS FLEX LINER KIT FOR INSERTS

      VOLKI-625
      N/A
      Discontinued

        6"Ø X 35' STAINLESS FLEX LINER KIT FOR INSERTS

        VOLKI-635
        N/A
        Discontinued

        SPECIFICATIONS AND MANUALS

        Appliance performance

        Average overall efficiency-dry cordwood (HHV) (5)(6)
        72 %
        Fuel type
        Dry cordwood
        Maximum heat output-dry cordwood (4)
        75,000 BTU/h
        Optimum efficiency (8)(9)
        79 %
        Overall firebox volume-ft³
        2.4 ft³s
        Maximum overall heat output rate (4)(5)
        44,500 BTU/h (13.04 kW)
        Minimum overall heat output rate (4)(5)
        14,200 BTU/h (4.16 kW)
        Recommended heating area-ft² (3)
        1,700 - 2,900 ft²
        EPA loading volume
        1.95 ft³
        Average overall efficiency-dry cordwood (LHV) (5)(7)
        77 %
        Average CO (10)
        69 g/h
        Optimum heat transfer efficiency (11)
        76 %

        General features

        Overall dimension (Depth)
        26 1/2"
        Overall dimension (Height)
        22 5/8"
        Maximum burn time
        8 h
        Average particulate emissions rate
        2.3 g/h
        Overall dimension (Width)
        28 1/2"
        Chimney diameter
        6"
        Shipping Weight
        415 lb (188 kg)
        Baffle type
        High quality vermiculite
        Canadian Standard (emissions)
        CSA B415.1-10
        Canadian Standard (safety)
        ULC S628
        Combustion technology
        Non-catalytic
        Door opening size - Width (in)
        17 1/2"
        Door opening size - Height (in)
        9"
        Door type
        Single, glass with cast iron frame
        Firebox size - Depth (in)
        16 1/2"
        Firebox size - Height (in)
        11 7/8"
        Firebox size - Width (in)
        21"
        Firebox lined with refractory bricks
        Yes
        Flue outlet diameter (in)
        6"

        General features

        Glass surface - W x H (in)
        14 7/8" x 9 1/4"
        Glass type
        Ceramic glass
        High-efficiency certified appliance
        Yes, EPA 2020 approved
        Log positioning
        Loading over width
        Maximum log length
        20" (16" recommended)
        Minimum chimney height
        12"
        Premium quality blower (CFM)
        144 CFM included
        Stainless-steel secondary-air system
        Yes
        Steel thickness-body
        3/16"
        Steel thickness-top
        1/4"
        Certified according to applicable standards
        CAN/USA accredited laboratory
        Type of chimney
        CAN/ULC S629, UL 103 HT (2100 °F)
        USA Standard (emissions)
        EPA
        USA Standard (safety)
        UL 1482, UL 737
        Warranty
        Limited 5 years
        Approved for an alcove installation
        No
        Minimum fireplace opening (Width)
        28 7/8"
        Minimum fireplace opening (Height)
        23 3/8"
        Minimum fireplace opening (Depth)
        15 3/4"
        See more >

        Manuals

        Clearances to combustible materials

        Clearances to combustible materials

        		USA

        * Les informations inscrites sur la plaque d'homologation de l'appareil ont toujours préséance sur les informations contenues dans tout autre média publié (manuels, catalogues, circulaires, revues ou sites Web). Consultez le manuel d'installation pour valider tous les dégagements aux matériaux combustibles.
