FW240007 WOOD STOVE - CFM

VP00310

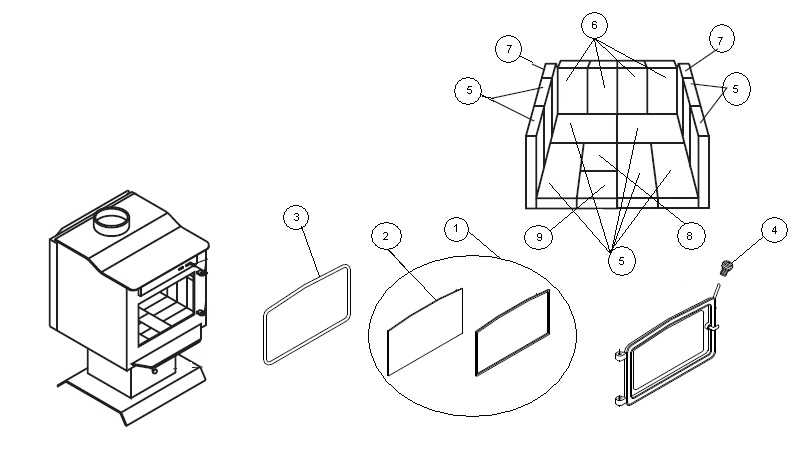

The reference plan contains the numbers used in the table below to identify parts.

#Part (sold individually)Msrp per item*Shipping date
1SE63000
8 1/2" x 13 1/8" GLASS WITH GASKET
1 / appliance (sold individually)
--
2AC06400
3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET
1 / appliance (sold individually)
--
3AC06500
SILICONE & 5/8" x 8' BLACK DOOR GASKET KIT
1 / appliance (sold individually)
--
4AC07867
1/2" CHROME COIL HANDLE
1 / appliance (sold individually)
--
529020
4 1/2" x 9" x 1 1/4" REFRACTORY BRICK HD
9 / appliance (sold individually)
--
6PL36112
4" x 7 1/4" x 1 1/4" REFRACTORY BRICK
4 / appliance (sold individually)
--
7PL36021
2 1/8" x 9" x 1 1/4" REFRACTORY BRICK
2 / appliance (sold individually)
--
8SE16059
ASH PLUG
1 / appliance (sold individually)
--
9PL36049
4 1/2" x 4 1/2" x 1 1/4" REFRACTORY BRICK
1 / appliance (sold individually)
--

The number appears on the reference plan provided above the table.

Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
