S245E WOOD STOVE

CB00007

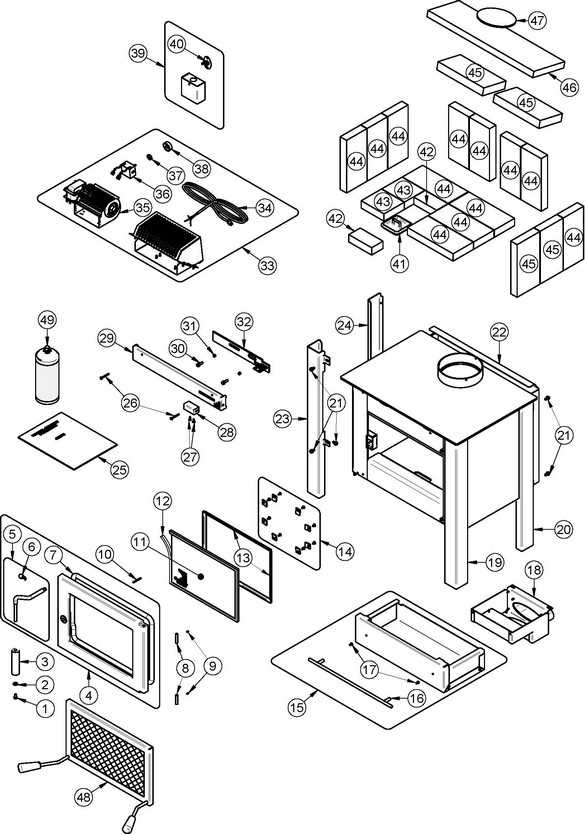

The reference plan contains the numbers used in the table below to identify parts.

#Part (sold individually)Msrp per item*Shipping date
130025
BLACK SCREW 1/4-20 x 1/2" PAN-HEAD QUADREX
1 / appliance (sold individually)
--
230185
BLACK WASHER 17/64" AA TYPE
1 / appliance (sold individually)
--
330742
DRILLED BLACK WOODEN DOOR HANDLE
1 / appliance (sold individually)
--
4SE24254
CAST IRON DOOR WITH GASKET AND HANDLE
1 / appliance (sold individually)
--
5AC09197
HANDLE AND LATCH KIT FOR S245
1 / appliance (sold individually)
--
6AC09185
DOOR LATCH KIT
1 / appliance (sold individually)
--
7AC06500
SILICONE & 5/8" x 8' BLACK DOOR GASKET KIT
1 / appliance (sold individually)
--
830341
HINGE PIN 5/16" x 1 1/2"
2 / appliance (sold individually)
--
930117
BLACK SET SCREW #10-32 x 3/16"
2 / appliance (sold individually)
--
1030101
SPRING TENSION PIN 5/32"Ø x 1 1/2"L
1 / appliance (sold individually)
--
11SE63308
8 15/16" x 13 5/16" GLASS WITH GASKET
1 / appliance (sold individually)
--
12AC06400
3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET
1 / appliance (sold individually)
--
13PL63316
GLASS FRAME
2 / appliance (sold individually)
--
14SE53585
GLASS RETAINER KIT WITH SCREWS (12 UNITS)
1 / appliance (sold individually)
--
15SE63301
ASH DRAWER
1 / appliance (sold individually)
--
1630748
BRUSHED NICKEL LONG ASHES DRAWER HANDLE
1 / appliance (sold individually)
--
1730124
SCREW #8 - 32 x 5/16" TRUSS QUADREX ZINC
2 / appliance (sold individually)
--
18AC01331
5"Ø FRESH AIR INTAKE KIT
1 / appliance (sold individually)
--
19PL63321
FRONT RIGHT LEG
1 / appliance (sold individually)
--
20PL63309
REAR RIGHT SIDE LEG
1 / appliance (sold individually)
--
2130060
THREAD-CUTTING SCREW 1/4-20 x 1/2" F HEX STEEL SLOT WASHER C102 ZINC
12 / appliance (sold individually)
--
2299999
BUILD TO ORDER
1 / appliance (sold individually)
--
23PL63312
LEFT FRONT LEG
1 / appliance (sold individually)
--
24PL63311
REAR LEFT SIDE LEG
1 / appliance (sold individually)
--
2599998
DISCONTINUED
1 / appliance (sold individually)
--
2699998
DISCONTINUED
1 / appliance (sold individually)
--
2730129
METAL SCREW #10 x 1/2" PAN QUADREX ZINC "A" TYPE
2 / appliance (sold individually)
--
28PL06728
AIR CONTROL HANDLE
1 / appliance (sold individually)
--
29SE63306
AIR DAMPER COVER
1 / appliance (sold individually)
--
3030094
HEX SCREW WASHER HEAD 1/4-20 x 3/4" F ZINC TYPE
2 / appliance (sold individually)
--
3130428
BUSHING
2 / appliance (sold individually)
--
32SE63300
AIR CONTROL DAMPER
1 / appliance (sold individually)
--
33AC02050
BLOWER WITH VARIABLE SPEED CONTROL | 100 CFM
1 / appliance (sold individually)
--
3460013
POWER CORD 96" x 18-3
1 / appliance (sold individually)
--
3544073
CROSSFLOW BLOWER 115V-60Hz-39W 100 CFM
1 / appliance (sold individually)
--
3644080
RHEOSTAT WITHOUT NUT (AC-11)
1 / appliance (sold individually)
--
3744087
RHEOSTAT NUT
1 / appliance (sold individually)
--
3844085
RHEOSTAT KNOB
1 / appliance (sold individually)
--
39AC02055
QUICK CONNECT THERMODISC
1 / appliance (sold individually)
--
4044028
CERAMIC THERMODISC F110-20F
1 / appliance (sold individually)
--
41SE16059
ASH PLUG
1 / appliance (sold individually)
--
42PL36238
2 1/4" x 4 1/2" x 1 1/4" REFRACTORY BRICK
2 / appliance (sold individually)
--
43PL36084
4" x 4 1/2" x 1 1/4" REFRACTORY BRICK (AC-SB4.5)
2 / appliance (sold individually)
--
4429015
4" x 9" x 1 1/4" REFRACTORY BRICK
12 / appliance (sold individually)
--
4529010
4 1/2" x 9" x 1 1/4" REFRACTORY BRICK
4 / appliance (sold individually)
--
4621386
BACK INSULATION BAFFLE
1 / appliance (sold individually)
--
47PL63339
BAFFLE INSULATION WEIGHT
1 / appliance (sold individually)
--
48AC01318
RIGID FIRESCREEN
1 / appliance (sold individually)
--
49AC05959
METALLIC BLACK STOVE PAINT - 342 g (12oz) AEROSOL
1 / appliance (sold individually)
--

The number appears on the reference plan provided above the table.

Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
